Exploring the Functionality and Applications of the BT136 600E TRIAC

What is BT136 600E TRIAC?

The BT136 600E TRIAC, a member of the TRIAC (Triode for Alternating Current) family, is a semiconductor device widely used for controlling AC power. Its unique structure and characteristics make it an important component in various electronic circuits. By delving deep into the functions and Application of the BT136 600E TRIAC, you will discover its operating principles, features and practical applications.

Working Principle:

The bidirectional conduction theory underpins the operation of the BT136 600E TRIAC. It permits bidirectional current flow when it is stimulated. It has three terminals: an input (G) with a strong pulse supply, main terminal 1 (MT1), main terminal 2 (MT2), and an input (MT3). The state of the device can be changed from open to closed. in order to effectively regulate the alternating current flow. It is perfect for applications that need precise control over AC power because of its switching functionality.

Features and Specifications:

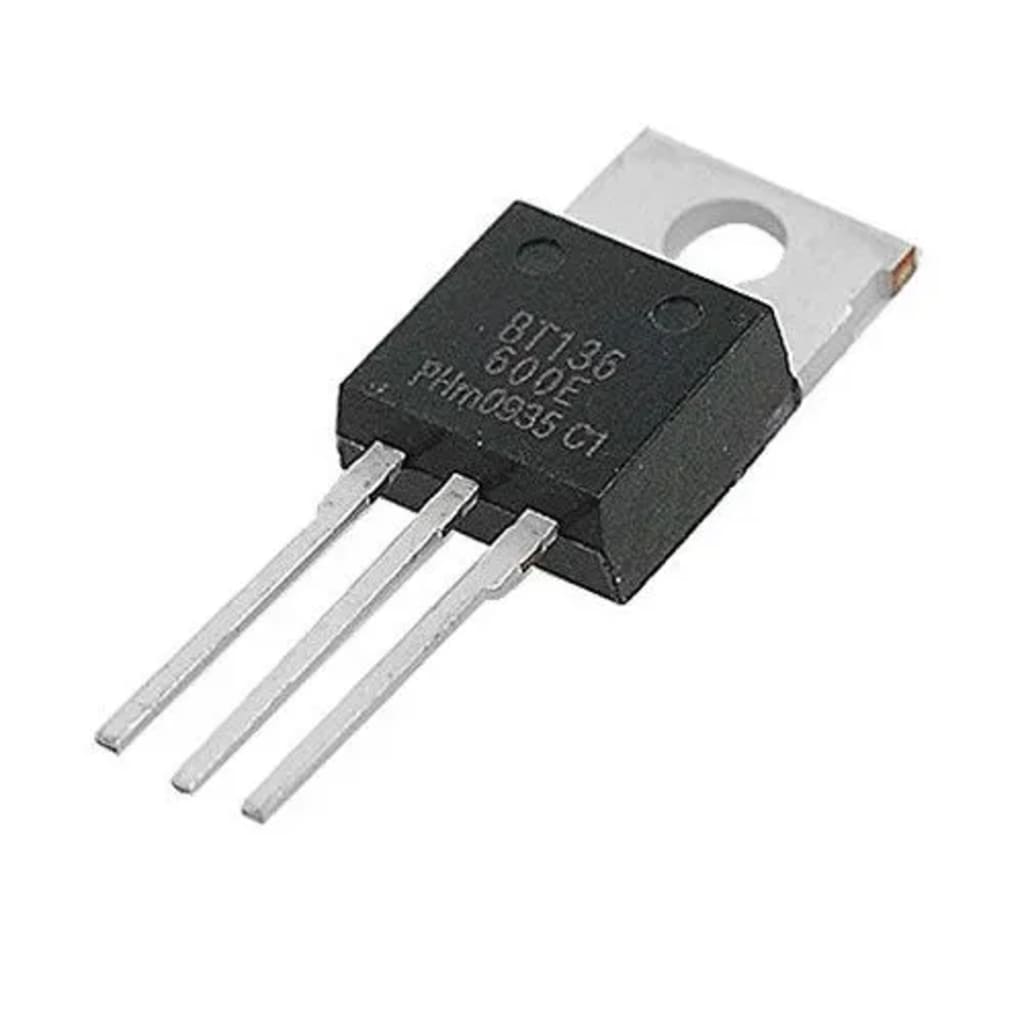

High voltage and current handling capabilities are possessed by the BT136 600E TRIAC. Its continuous RMS current rating is 4A, and its highest voltage rating is 600V RMS. A modest gate trigger current is also present. This is usually about 35 mA, which allows for efficient control even in trigger circuits with little power. Because of its small size, the TO-220AB may be integrated into many different types of electrical designs. without difficulty offers dependability and adaptability for a variety of uses.

Applications in Dimming and Motor Speed Control:

Dimming circuits for lighting systems is one of the BT136 600E TRIAC's primary applications. through altering the pulse width or gate trigger voltage. The power sent to the load will be under the device's control. It enables accurate and seamless brightness level control. Similarly, in motor speed control applications, TRIAC regulates the voltage applied to the motor to enable control over the speed of the AC motor. This makes it possible for appliances like mixers and fans to operate at optimal speeds.

Usage in Heating and Power Regulation:

Thermal control makes extensive use of the BT136 600E TRIAC. such as electric water heaters, stoves, and cookers. Through control over the power supplied to the heating element, TRIAC ensures accurate temperature regulation. Both safety and energy efficiency are enhanced. In order to support steady and dependable power supply management, it is also utilized in the power control circuits of electrical appliances like voltage regulators and UPS systems.

Conclusion:

To sum up, the BT136 600E TRIAC is a flexible and essential part of many electrical circuits. It offers efficient regulation and control over AC electricity. robust style It is appropriate for a variety of applications due to its high voltage/current rating and simplicity of integration. dimming and control of motor speed Controlled heating and power The BT136 600E TRIAC continues to be a vital component of contemporary electronics even as technology develops. stimulating innovation and raising output in a variety of sectors.

Finl Thoughts:

The BT136 600E TRIAC is a versatile and widely used component in AC power control applications. Its capability to manage high voltages and currents while being triggered by low-power signals makes it an efficient choice for various household and industrial applications. However, proper heat management and protection circuits (like snubber circuits) are often necessary to ensure reliable operation and longevity.

FAQs

1. What is a BT136 600E TRIAC?

The BT136 600E is a TRIAC, a type of semiconductor device that can control AC power. It can switch and control the flow of current in both directions when triggered.

2. What are the key specifications of the BT136 600E TRIAC?

Voltage Rating: 600V

Current Rating: Typically 4A to 8A

Gate Trigger Voltage: Approximately 1.3V to 1.5V

Holding Current: Typically around 2mA to 25mA
