Unleash Motor Control Potential with the L293D Motor Drive Shield for Arduino

Introduction to L293D Motor Drive Shield for Arduino

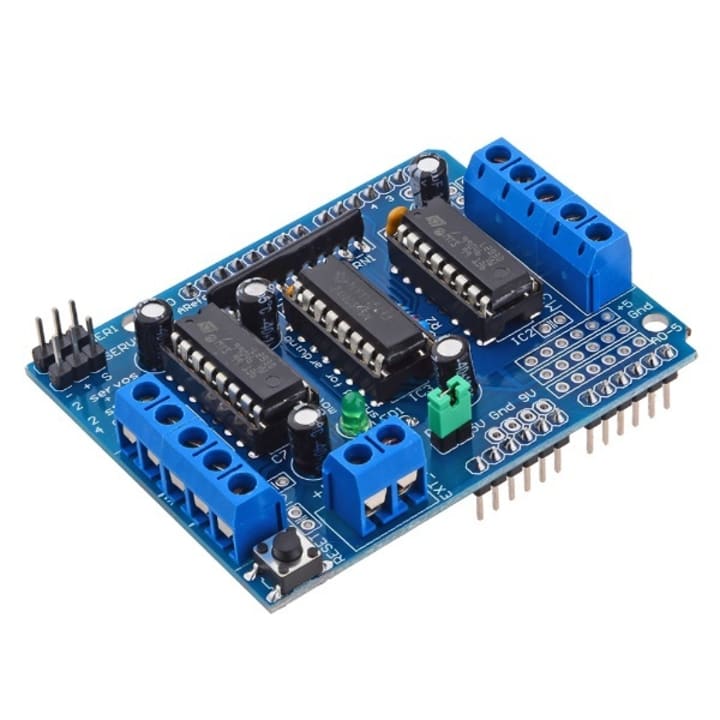

The L293D Motor Drive Shield for Arduino is a versatile and popular motor control board designed specifically for Arduino platforms. It provides an easy and convenient way to control DC motors, stepper motors, and servo motors using your Arduino board. Whether you're a beginner or an experienced hobbyist, this motor drive shield offers a simple solution for incorporating motor control into your projects.

Key Features of the L293D Motor Drive Shield

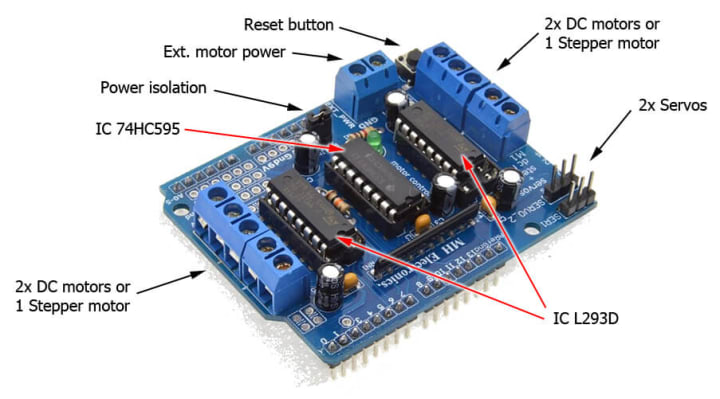

Dual H-Bridge Design: The L293D Motor Drive Shield features two independent H-bridges, which allow you to control two DC motors or one stepper motor. H-bridges are essential for controlling the direction and speed of motors, making them ideal for a wide range of applications.

Current Sensing: The shield incorporates current sensing functionality, enabling you to monitor the motor current consumption. This feature can be useful for debugging or implementing safety measures, preventing damage to the motors or the shield itself.

Compatibility: The L293D Motor Drive Shield is designed to work seamlessly with various Arduino boards, including Arduino Uno, Arduino Mega, and Arduino Leonardo. It uses the Arduino's digital pins to control the motors, simplifying the wiring and programming process.

Built-in Protection Mechanisms: The shield incorporates built-in diodes that protect against back-electromotive force (EMF), which occurs when a motor decelerates or changes direction. These diodes help prevent voltage spikes that could damage the shield or other components.

Versatile Power Supply Options: The shield provides flexible power supply options. You can power the motors using the Arduino's power supply or an external power source, depending on your motor's voltage and current requirements. This flexibility allows you to adapt the shield to a wide range of motor types and operating conditions.

Getting Started with the L293D Motor Drive Shield

Hardware Setup: Connect the L293D Motor Drive Shield to your Arduino board by aligning the shield's pins with the Arduino's headers. Ensure a secure connection and avoid misalignments. If you're using external power for the motors, make sure to connect the appropriate power source to the shield.

Motor Connections: Connect your DC motors, stepper motors, or servo motors to the shield's motor terminals. Pay attention to the correct polarity and ensure proper connections for smooth operation. For stepper motors, consult the datasheet or motor specifications to determine the coil wire configurations.

Programming: Write or download the necessary Arduino code to control the motors. The shield utilizes the Arduino's digital pins for motor control. Use the provided Arduino libraries or create your own code to control the motor speed, direction, and rotation steps for stepper motors.

Powering Up: Power up your Arduino board either through USB or an external power supply. Make sure the motor power supply is connected and turned on (if using an external power source). Verify that the shield and motors receive power.

Motor Control: Run your Arduino code to control the motors. Utilize the shield's library functions or implement your own logic to control motor speed, direction, or rotation steps. Test the motor control thoroughly to ensure proper operation and make any necessary adjustments to your code.

Applications of the L293D Motor Drive Shield

The L293D Motor Drive Shield finds applications in various robotics, automation, and mechatronics projects, including:

Robot Vehicles: Build autonomous or remote-controlled robot vehicles by connecting DC motors to the shield. This shield provides motor control capabilities for robot movement and navigation.

CNC Machines: Utilize stepper motors with the shield to create computer numerical control (CNC) machines. This enables precise control of motor rotation and movement for applications such as 3D printers, laser engravers, or milling machines.

Home Automation: Incorporate motorized devices into your home automation projects. Use the shield to control curtains, blinds, or motorized doors, integrating them with your smart home system.

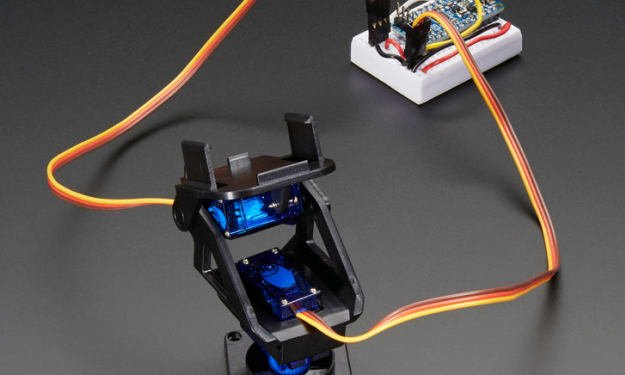

Robotic Arms: Create robotic arms or manipulators by connecting servo motors to the shield. This enables precise control of joint movements and allows you to implement pick-and-place operations or robotic arm control systems.

Conclusion

The L293D Motor Drive Shield for Arduino offers a convenient and efficient solution for controlling motors in your Arduino-based projects. Its dual H-bridge design, current sensing capability, and built-in protection mechanisms make it a versatile and reliable choice. By using this shield, you can focus on implementing motor control functionality while minimizing the complexity of wiring and programming. Experiment with different motor types and explore a wide range of applications, from robotics to home automation, taking advantage of the power and flexibility of the L293D Motor Drive Shield for Arduino.
