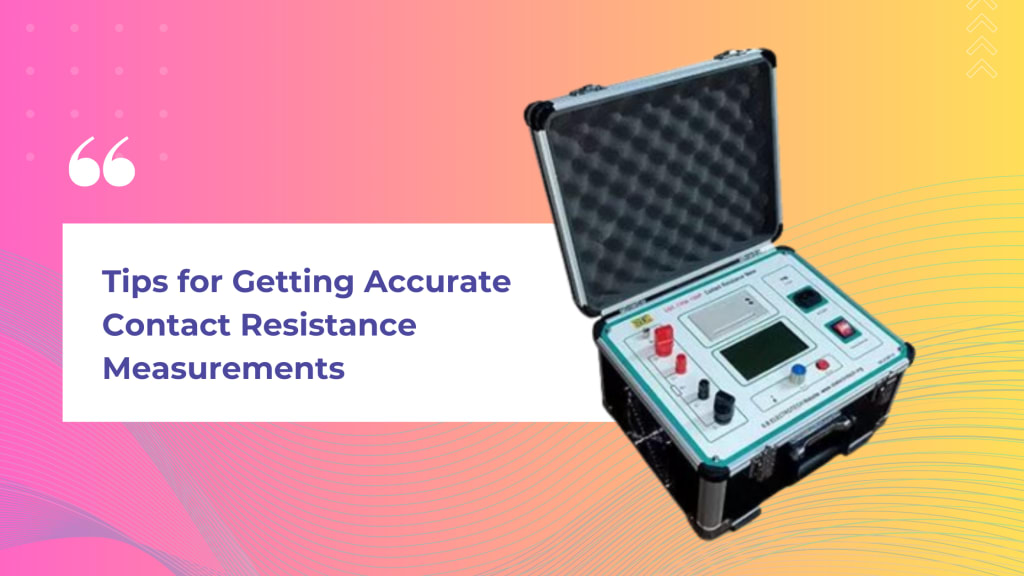

Tips for Getting Accurate Contact Resistance Measurements

An electronic instrument called a contact resistance meter is used to measure the electrical resistance at a junction or point of contact between two conductors.

Electrical testing and maintenance applications frequently employ resistance meters to check that electrical connections are free of corrosion or additional contaminants and are clean. They are particularly relevant in high-power and high-frequency circuits because even small modifications in resistance can have a big impact on how well the system works.

Since it is important to collect precise readings since even very little alterations could influence how a system functions, here are some tips to help you get accurate measurements using a Contact Resistance Meter:

Cleaning the surface

It's fundamental to confirm that the contact surfaces are clean and clear of any debris, dust, or other contaminants before taking any measurements. To clean the contacts, use alcohol or a cleaning solution.

Preventing loose connections

Make sure there are no loose connections between the probes and the contact points. Reading complications may result from faulty or loose connections.

Using the appropriate probes

Ascertain that you are leveraging the correct probes for your specific resistance meter. Using incorrect probes may end in inaccurate measurements because different probes are made for various uses.

Stabilization must be achieved

Allow the measurement to stabilise for a few seconds after securing the probes before gathering a reading. By doing this, you may be sure that the reading is accurate without being influenced by any transitory factors.

Using optimum temperature

It's crucial to take measurements at a constant temperature because contact resistance fluctuates by temperature. A measurement's accuracy may be impacted by taking it while the temperature is either too high or too low.

Take multiple readings

Take more than one measurement and compare the results to guarantee the precision of your measurements. To ensure the preciseness of the readings, take several measurements if there is a discrepancy.

Calibrate your instrument

To make sure your meter is giving correct results, calibrate it frequently. Inaccurate readings and unreliable outcomes can result from a meter that is not fully calibrated.

How to Calibrate a Contact Resistance Meter?

A resistance meter must be calibrated to offer accurate and trustworthy measurements. The general steps involved in calibrating a resistance meter are listed below:

1. Getting a known resistance standard with a value within the range of the resistance values you'll be measuring is the first step. These standards are available from a variety of Circuit Breaker Timer Manufacturers in India, or you can make your custom by utilizing a calibrated resistor.

2. Select the correct parameters for your measurement when the instrument is turned on. Specific calibration settings can be obtained for some meters.

3. Use the proper probes or leads to attach the calibration standard to the meter. Check to make sure the connection is firmly in place.

4. Take a reading of the resistance meter’s resistance value. Compare it to the standard's recognised resistance value. Adjust the meter to match the previously identified resistance value if there is a deviation.

5. To cover the range of resistance values you will be measuring, repeat the method for several different resistance values. If necessary, adjust the meter to match each known resistance value.

Conclusion

For the precise calibration method, always consult the manufacturer's instructions or consult with a professional expert.

Contact Resistance Meters are available from S.B. Electrotech in a variety of designs, and we believe in giving our customers the right guidance so they can pick the instrument that best suits their needs. We are one of the leading Contact Resistance Meter Suppliers in India and you can always count on us to meet your company's needs.
