Understanding STM32F103 Microcontroller in One Article

Let’s get straight to the point, what is STM32F103 Microcontroller?

Don’t worry, this article will tell you about it with its performance, and its most popular module as well as performance.

The STM32F series

Basic Introduction

The STM32F series belongs to the mid to low-end 32-bit ARM microcontrollers, produced by STMicroelectronics. These chips have a Cortex-M3 core, a 72 MHz operating frequency, high-speed embedded memory (up to 128kbytes of flash and up to 20 Kbytes of SRAM), and a wide range of enhanced I/O and peripherals connected to the APB bus.

Types

The series is classified into three types according to the size of the on-chip Flash memory: small capacity (16K and 32K), medium capacity (64K and 128K), and large capacity (256K, 384K, and 512K).

All devices provide 2 12-bit ADCs, 3 general-purpose 16-bit timers with 1 PWM timer, as well as standard and advanced communication interfaces, including up to 2 I2C and SPI, 3 USARTs, 1 USB, and 1 CAN. The devices are powered by a 2.0~3.6V power supply and operate within a temperature range of -40 to +85℃ or an extended temperature range of -40 ~ +105℃. They feature comprehensive power-saving modes, with Vbat for RTC and backup registers, allowing for low-power applications.

Application

These features make it suitable for a wide range of applications, including motor control, application control, medical and portable equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVAC systems.

What is its most popular module?

STM32F103C8T6

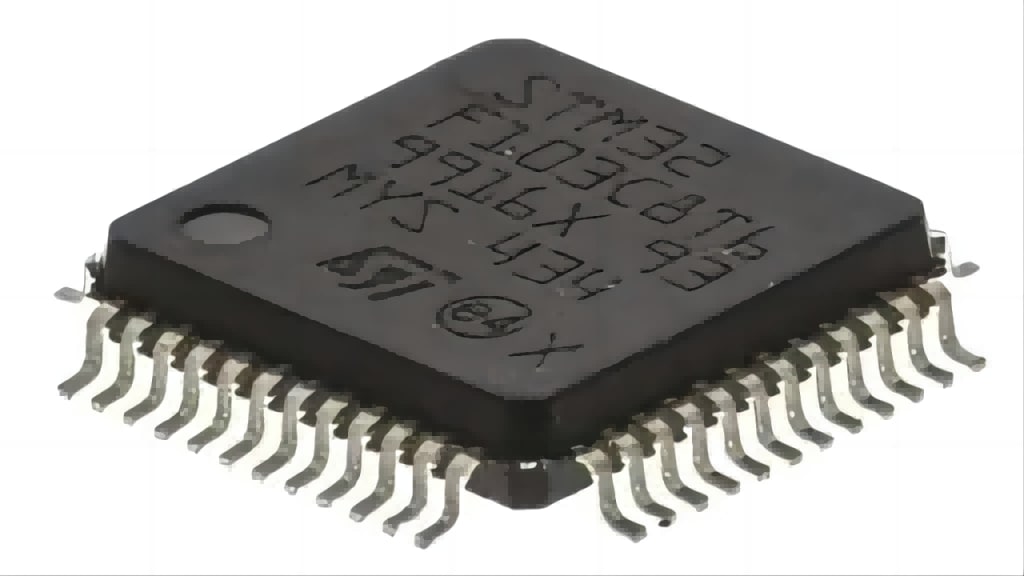

Among them, the recently popular STM32F103C8T6 is a medium-density performance line, equipped with an ARM Cortex-M3 32-bit microcontroller, in a 48-pin LQFP package. It combines a high-performance RISC core, running at up to 72MHz, with high-speed embedded memory, enhanced input/output ranges, and external connections to two APB buses. STM32F103C8T6 features a 12-bit ADC, timers, PWM timers, and standard and advanced communication interfaces.

The typical features of STM32F103C8T6 are:

Operating voltage range: 2V to 3.6V

64K bytes of flash memory

20K bytes of SRAM

CRC calculation unit, 96-bit unique ID

Two 12-bit, 1µs ADCs (up to 10 channels)

7-channel DMA controller, 3 general-purpose timers, and 1 advanced control timer

37 fast input/output ports

Serial wire debug (SWD) and JTAG interfaces

Two SPI, two I2C, three USARTs, one USB, and one CAN interface

Environmental operating temperature range: -40°C to 85°C

STM32F103C8T6 is commonly used in embedded design and development, motor control, medical, portable equipment, wireless, industrial, imaging, video, and visual products, consumer electronics, and automotive applications.

The performance of the STM32F103C8T6 module makes it suitable for a wide range of applications. Its high-speed embedded memory allows for efficient data processing, while the enhanced input/output ranges and external connections to two APB buses enable seamless integration with other devices and peripherals. The 12-bit ADCs provide accurate analog-to-digital conversion, making them ideal for applications that require precise measurements.

The STM32F103C8T6 also offers various communication interfaces, including SPI, I2C, USART, USB, and CAN, enabling easy connectivity with external devices and networks. This makes it highly versatile and compatible with different communication protocols and standards.

Moreover, the module features a CRC calculation unit and a 96-bit unique ID, which enhance security and enable device identification. The presence of a DMA controller and multiple timers further enhances its performance and allows for efficient data transfer and timing control.

The STM32F103C8T6 operates within a wide temperature range of -40°C to 85°C, making it suitable for use in harsh environmental conditions. This makes it reliable for applications in industrial settings, automotive systems, and other demanding environments.

Due to its capabilities and performance, the STM32F103C8T6 is widely used in various industries. In the field of embedded design and development, it serves as a reliable and efficient microcontroller for creating innovative and advanced solutions. Its application extends to motor control, medical devices, portable equipment, wireless systems, imaging and video products, consumer electronics, and more.

In conclusion, the STM32F103 microcontroller series, with its popular module, the STM32F103C8T6, offers a powerful and versatile platform for a wide range of applications. Its high-speed processing, ample memory, extensive I/O options, and robust communication interfaces make it a preferred choice among designers and developers. Whether in industrial automation, consumer electronics, or automotive systems, the STM32F103C8T6 provides the performance and reliability required for successful implementation.
