Junction Box Manufacturing Plant Setup Cost: Complete Guide to Layout, Machinery, Raw Materials, and Business Plan

The electrical components industry continues to experience robust growth as infrastructure development, renewable energy projects, and smart building technologies expand globally. Junction boxes, essential for protecting electrical connections and ensuring safety in residential, commercial, and industrial applications, represent a lucrative manufacturing opportunity for entrepreneurs and established businesses alike.

Understanding Junction Box Manufacturing

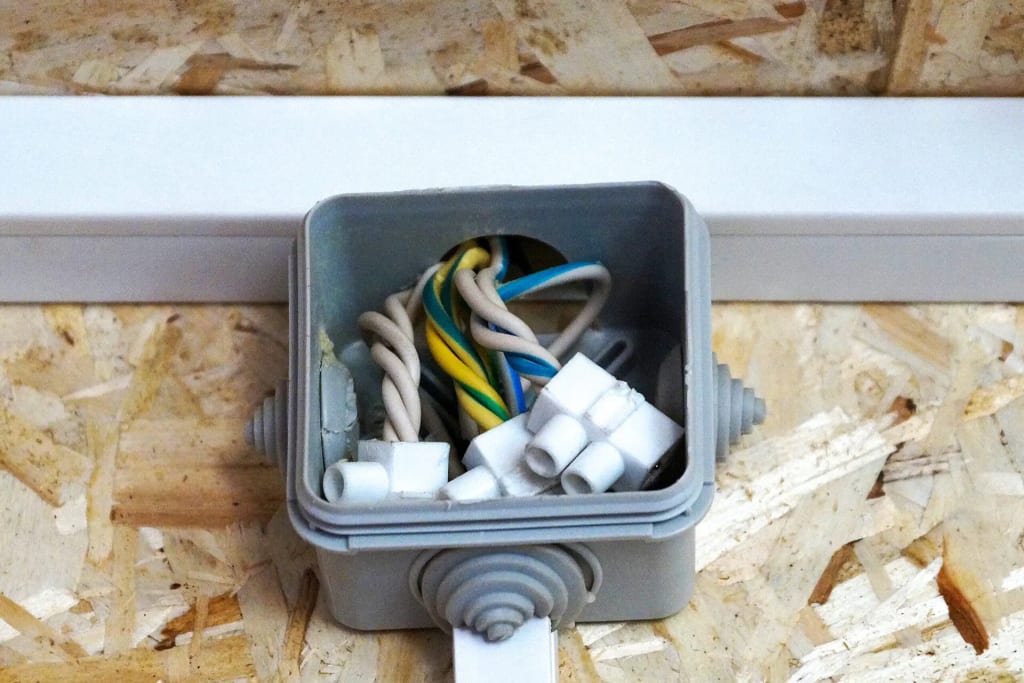

Junction boxes serve as critical protective enclosures for electrical wiring connections, safeguarding against environmental factors, accidental contact, and fire hazards. The manufacturing process involves precision molding, assembly, and quality control to meet stringent electrical safety standards and building codes.

Initial Investment Considerations

Establishing a junction box manufacturing plant requires careful financial planning across multiple categories. The total investment encompasses land acquisition or lease costs, building construction or renovation, machinery procurement, raw material inventory, working capital, and regulatory compliance expenses. The scale of operation significantly influences the capital requirement, with small-scale units demanding considerably less investment than large automated facilities.

Plant Layout and Infrastructure

An efficient plant layout optimizes workflow and maximizes productivity. The facility should incorporate distinct zones for raw material storage, injection molding operations, assembly areas, quality control laboratories, finished goods warehousing, and administrative offices. Adequate space allocation for material handling equipment and safe personnel movement remains crucial.

The building infrastructure must support heavy machinery installation, requiring reinforced flooring, proper electrical load capacity, ventilation systems, and temperature control. Environmental considerations such as wastewater management and emissions control should be integrated into the design phase.

Grab a sample PDF of this report

Essential Machinery and Equipment

The production line centers around injection molding machines suitable for thermoplastic materials. The capacity and automation level of these machines directly impact production volumes and labor requirements. Additional equipment includes material mixing and drying systems, cooling units, and material handling conveyors.

Downstream operations require drilling and threading machines, terminal fitting equipment, gasket cutting tools, and assembly workstations. Quality assurance necessitates investment in testing equipment for electrical insulation, impact resistance, and dimensional accuracy verification.

Supporting infrastructure includes compressors for pneumatic systems, material handling forklifts, pallet trucks, and warehouse storage racks. Modern facilities increasingly incorporate automation and robotics to enhance precision and reduce labor costs.

Raw Material Requirements

The primary raw material consists of engineering-grade thermoplastics, with material selection depending on the application specifications and environmental ratings required. Flame-retardant additives ensure compliance with fire safety regulations, while UV stabilizers protect outdoor installations.

Additional materials include metal components such as terminal blocks, mounting brackets, screws, and grounding hardware. Gaskets and sealing materials prevent moisture ingress, while labels and documentation materials accompany finished products.

Establishing reliable supplier relationships ensures consistent material quality and favorable pricing structures. Many manufacturers maintain strategic inventory levels to buffer against supply chain disruptions while managing working capital efficiently.

Manufacturing Process Overview

The production process begins with material preparation, where raw thermoplastic resins are dried and mixed with additives. Injection molding forms the primary box enclosures and covers, with molds determining the final product dimensions and features.

Secondary operations include drilling knockout holes, installing threaded entries, and attaching mounting hardware. Terminal blocks and grounding provisions are installed according to product specifications. Each unit undergoes inspection before packaging, with batch testing ensuring compliance with electrical safety standards.

Regulatory Compliance and Certifications

Junction box manufacturing operates under strict regulatory frameworks governing electrical safety. Products must comply with national and international standards, requiring testing and certification from recognized authorities. The manufacturing facility itself must meet industrial licensing requirements, environmental clearances, and workplace safety regulations.

Quality management system certification demonstrates commitment to consistent product quality and operational excellence. Export-oriented manufacturers often pursue additional certifications to access international markets.

Workforce Requirements

Successful operations depend on a skilled workforce spanning multiple functions. Technical personnel include production supervisors, machine operators, quality control inspectors, and maintenance technicians. Supporting roles encompass procurement specialists, inventory managers, sales representatives, and administrative staff.

Ongoing training programs ensure workers remain updated on safety protocols, quality standards, and operational best practices. As automation increases, the workforce composition shifts toward technical specialists capable of managing sophisticated equipment.

Business Plan Fundamentals

A comprehensive business plan articulates the venture's strategic vision, market analysis, competitive positioning, and financial projections. Market research identifies target customer segments, distribution channels, and pricing strategies. Competitive analysis reveals differentiation opportunities through product features, quality standards, or service excellence.

Financial projections model revenue growth, production costs, operating expenses, and profitability timelines. Break-even analysis determines the production volume required to cover fixed and variable costs. Risk assessment identifies potential challenges and mitigation strategies.

Revenue Streams and Market Opportunities

Revenue generation extends beyond standard product sales to include customized solutions for specific applications, private label manufacturing for distributors, and long-term supply contracts with construction companies and electrical contractors. Value-added services such as technical consultation and rapid delivery programs strengthen customer relationships.

Market segments range from residential construction to industrial facilities, renewable energy installations, and infrastructure projects. Geographic expansion and product line diversification offer growth pathways for established manufacturers.

Conclusion

Establishing a junction box manufacturing plant presents a viable business opportunity within the expanding electrical components sector. Success requires comprehensive planning, adequate capitalization, quality-focused operations, and strategic market positioning. Entrepreneurs who invest in modern equipment, maintain rigorous quality standards, and build strong customer relationships can achieve sustainable profitability in this essential industry.

The journey from concept to operational facility demands patience, technical expertise, and business acumen, but the resulting enterprise contributes to electrical safety and infrastructure development while generating economic returns.
