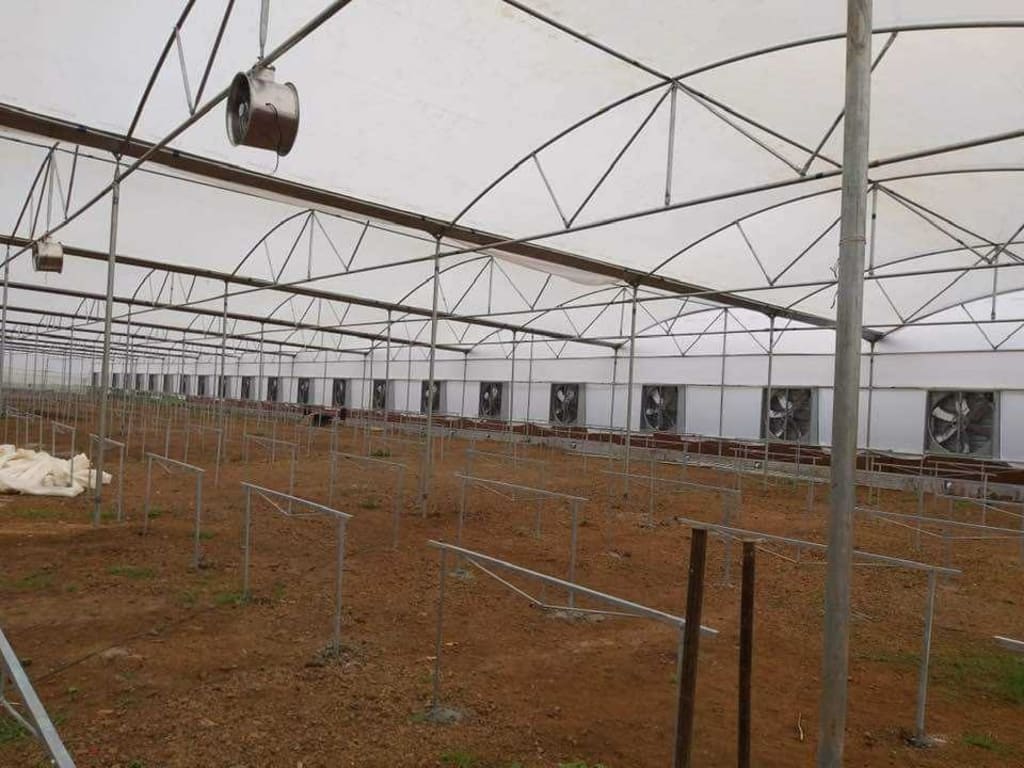

Fan-Pad Poly House (Forced Ventilated) (Anti-Rain)
Suitable for Tissue culture lab, cultivation of exotic vegetables & leafy. Allows for second layer sliding roof for optimum control of temperature, sunlight and humidity. Fan and pad create suitable conditions. Strong capacity to withstand harsh weather conditions.
Features and Specifications
Span x Bay (meter) – 8 x 4
Center (Top) Height (meter) – 5.5, 6
Side (Gutter) Height (meter) – 4
GI Pipe (Round) Column/s (Hot Dip Galvanized Iron) (OD in mm) – 28, 33, 42, 48, 60, 76
Thickness of GI Pipe/s (mm) – 2, 2.9
Roof Covering – Poly Film Sheet, 200 Micron, Diffused, Anti-Dust, Anti-Drip, IR Cool, UV Protected, Color: White, Blue, Yellow etc.
Side Covering – Poly Film Sheet, 200 Micron, Diffused, Anti-Dust, Anti-Drip, IR Cool, UV Protected, Color: White, Blue, Yellow etc.
2nd Layer Roof Covering – Possible
Trellising Support System – Possible
Exhaust Fan – Size (mm): 1380 x 1380 x 400, Air Flow (CHM): 44000, Blades Speed (RPM): 400+, Blades Diameter (mm): 1250
Cooling Pad – Standard Size (mm): 1500 x 600 x 100
Air-Circulation Fan – Size (mm): 560 x 560 x 380, No. of Blades: 7, Blades Speed (RPM): 1400+, Air Flow (CFM): 16000+
Rain Water harvesting Possible – Possible
About the Creator
IG Aatreyas
IG Aatreyas is an end-to-end solution provider for all Protected Cultivation Structures, Greenhouse Covering Materials & Greenhouse Accessories. IG Aatreyas is a global manufacturer and supplier of all types of Shade Net House, Polyhouse.
