What’s the Difference Between Unitised Substation and Mobile Substation?

Substations are vital components in the electrical distribution system, helping in the transmission of electricity efficiently from power stations to homes and businesses. Two types of substations commonly used in modern electrical infrastructure are Unitised Substation and Mobile Substation. Both serve important roles, but they differ in several ways, including their design, purpose, and applications. In this article, we’ll dive into what makes each of these substations unique and highlight their key advantages.

Understanding Unitised Substation

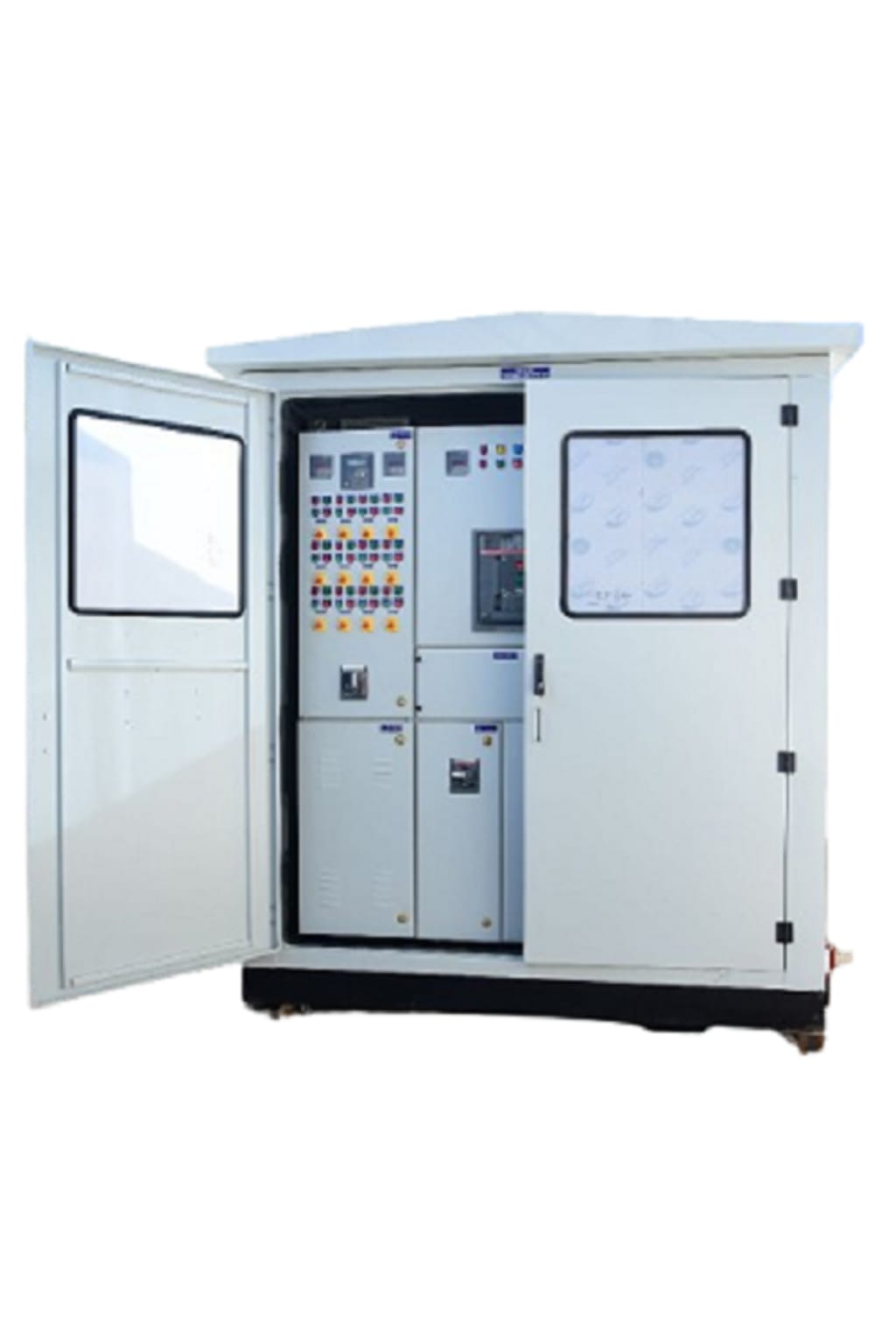

A Unitised Substation is a compact and pre-assembled unit designed to convert high-voltage electricity from transmission lines into low-voltage electricity suitable for distribution to end users. These substations are typically designed for outdoor use and are usually placed in areas where space is limited, such as residential neighborhoods or industrial zones.

Containerized substation are often enclosed in a durable, weather-resistant housing that ensures all components remain safe from external conditions. They are designed for efficiency, compactness, and ease of installation. These substations come with several essential components such as transformers, circuit breakers, switchgears, and protection devices.

What Makes Mobile Substation Different?

A Mobile Substation, on the other hand, is a portable version of a traditional substation, designed to be relocated quickly and easily. This type of substation is especially useful in emergency situations or temporary setups. For instance, if there is a need for a temporary power supply in an area where an outage has occurred, a Relocatable substation can be deployed to restore electricity in a short time.

Relocatable substation are mounted on trailers or trucks, making them highly flexible and easy to transport from one location to another. Just like a Containerized substation, Portable substation contain the same core components, such as transformers and switchgear, but are designed for flexibility and mobility.

Key Differences Between Unitised and Mobile Substation

1. Portability

The most notable difference between a Unitised Substation and a Mobile Substation is portability. Containerized substation are permanent installations designed for long-term use at a specific location, while Mobile electrical station are designed to be moved from one place to another, making them ideal for temporary power requirements.

2. Installation and Setup

A Containerized substation is typically installed in a fixed location, and once installed, it serves its purpose for years. They are easy to install, especially when space is limited. In contrast, Mobile electrical station require minimal setup and can be deployed quickly. This makes Mobile power unit ideal for situations where a rapid response is needed, such as natural disasters, construction sites, or during maintenance activities.

3. Cost and Application

Pre-assembled substation are generally less expensive than Mobile power unit, mainly because they are stationary and don’t require specialized transportation equipment. On the other hand, Mobile Substation tend to be more costly due to their design and mobility features. They are primarily used in industries or situations where flexibility and rapid deployment are crucial, such as in mining, military, or emergency response.

4. Durability

Both substations are designed to be durable, but Pre-assembled substation are built for long-term use at a specific site. Their robust, weather-resistant casing ensures they can withstand harsh environmental conditions for years. In comparison, Relocatable substation are built to endure the challenges of being transported frequently, but they might be subjected to more wear and tear due to movement.

Advantages of Unitised Substation

1. Space-Efficiency: Pre-assembled substation are designed to be compact and modular, allowing them to fit into areas with limited space. Their compact design makes them perfect for urban environments or locations with space constraints.

2. Cost-Effective: Since they are fixed installations and don’t require transportation equipment, Unitised Substation tend to be more affordable compared to Transportable power station.

3. Reliability: With all components integrated into one unit, Pre-assembled substation are highly reliable, offering a stable power distribution system for long-term use.

4. Quick Installation: These substations are pre-assembled, allowing for faster installation at the site. This helps reduce the downtime required for electrical setups in new areas.

5. Low Maintenance: Due to their robust and simple design, Pre-assembled substation require minimal maintenance, making them an ideal choice for permanent installations.

Advantages of Mobile Substation

1. Portability: As the name suggests, Relocatable substation can be easily transported and deployed at different locations, making them ideal for temporary power solutions during emergencies or construction.

2. Flexibility: Transportable power station are perfect for industries or sites that require a flexible power supply. They can be moved quickly to locations where power is urgently needed, such as during natural disasters.

3. Quick Deployment: In situations where time is critical, Portable substation can be set up in a fraction of the time it takes to install a traditional substation, restoring power faster.

4. Temporary Power Supply: For industries or projects that need temporary power, such as construction or mining, a Transportable power station offers a convenient and reliable solution.

Choosing Between Unitised and Mobile Substation

The decision to choose a Unitised Substation or a Mobile Substation largely depends on the specific requirements of the electrical system and the duration of use. If you're looking for a long-term, permanent solution, a Pre-assembled substation is the best choice. However, if your power requirements are temporary or you need flexibility and mobility, a Relocatable substation would be more suitable.

Conclusion

Both Unitised Substation and Portable substation offer distinct advantages for different needs. Skid-mounted substation are ideal for long-term installations, offering space efficiency, reliability, and low maintenance. Transportable power station, on the other hand, excel in flexibility, portability, and rapid deployment for temporary power requirements.

When considering power distribution solutions, it’s important to assess your specific needs, site conditions, and budget. Whether you need a permanent installation or a temporary solution, Western Control Automation Pvt. Ltd. is here to provide high-quality and reliable substations tailored to your requirements.

By choosing the right substation, you ensure the efficient and safe distribution of electricity, whether for residential, industrial, or emergency purposes.
