What is a Double Acting Cylinder and How Does It Work?

In the world of pneumatic systems, understanding the various components is crucial for optimizing performance and ensuring reliability. One such essential component is the double acting cylinder.

These cylinders play a significant role in many industrial applications, providing the power and precision needed for a range of operations.

But what exactly is a double acting cylinder, and how does it work? This blog post will delve into these questions, exploring the definition, operation, advantages, and where to find reliable double acting cylinders.

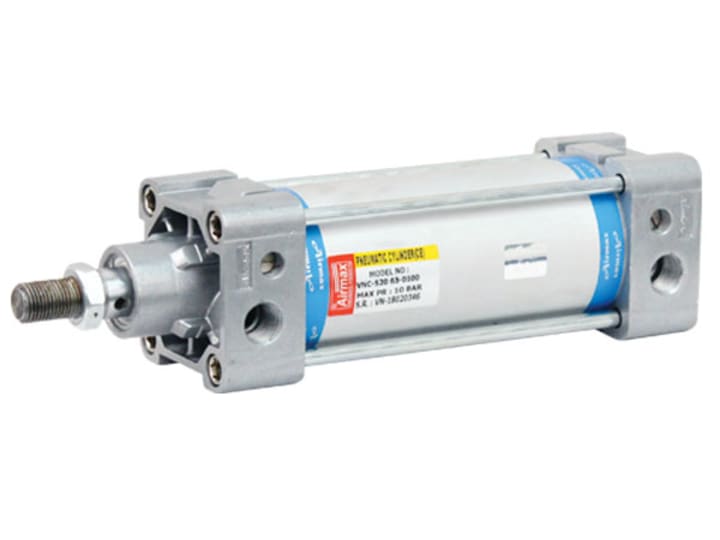

What is a Double Acting Cylinder?

A double acting cylinder is a type of pneumatic cylinder that uses air pressure to move a piston in both directions. Unlike single acting cylinders, which use air pressure to move the piston in only one direction and rely on a spring or other external force to return it, double acting cylinders can exert force in both the extending and retracting movements.

This dual functionality makes them more versatile and suitable for applications requiring precise control of the piston’s movement.

Key Components:

Piston: The piston is the central component that moves back and forth within the cylinder. It divides the cylinder into two chambers, each of which can be pressurized.

Rod: Attached to the piston, the rod extends out of the cylinder and connects to the machinery or system that requires linear motion.

Ports: Double acting cylinders have two ports, one at each end of the cylinder, allowing air to enter and exit the chambers on either side of the piston.

When comparing double acting cylinders with single acting cylinders, the main difference lies in the number of ports and the ability to control the piston in both directions.

While single acting cylinders are simpler and may be sufficient for certain tasks, double acting cylinders provide greater flexibility and control, making them the preferred choice for more complex applications.

How Does a Double Acting Cylinder Work?

The operation of a double acting cylinder is based on the principle of air pressure acting on the piston. When air is introduced into one of the cylinder’s chambers through the corresponding port, it pushes the piston in the opposite direction.

For instance, if air is supplied to the front chamber, the piston will move towards the back, causing the rod to extend. Conversely, when air is supplied to the rear chamber, the piston moves forward, retracting the rod.

This ability to apply force in both directions is what sets double acting cylinders apart. By controlling the air pressure in each chamber, the cylinder can precisely manage the speed, direction, and force of the piston’s movement.

This makes double acting cylinders highly adaptable and suitable for a wide range of industrial applications.

Example of Usage:

In manufacturing processes, double acting cylinders are often used in assembly lines to push, pull, lift, or lower components.

For example, in an automated production line, a double acting cylinder might be used to move a product from one station to another, applying consistent force in both directions to ensure smooth and efficient operation.

Why Choose a Double Acting Cylinder?

Choosing a double acting cylinder over a single acting one offers several advantages, particularly in applications that demand high precision and control. Some of the key benefits include:

Versatility: Double acting cylinders can perform a wider range of tasks due to their ability to exert force in both directions.

Efficiency: By eliminating the need for an external force to return the piston, double acting cylinders reduce the complexity of the system and improve overall efficiency.

Precision: The ability to control the piston’s movement in both directions allows for more accurate and consistent operations, which is essential in many industrial settings.

Double acting cylinders are preferred in applications where the load needs to be moved in both directions, such as in material handling systems, robotic arms, and packaging machinery.

Additionally, they are ideal for tasks that require controlled and repeatable motion, ensuring that the operation is performed correctly every time.

Factors to Consider When Selecting a Double Acting Cylinder:

When choosing a double acting cylinder, it’s important to consider factors such as the required stroke length, bore size, operating pressure, and the type of material used in construction. These factors will determine the cylinder’s performance and suitability for specific applications.

Where Can You Find Reliable Double Acting Cylinders?

Selecting a reliable manufacturer or supplier is crucial for obtaining high-quality double acting cylinders that meet your specific needs. When evaluating potential suppliers, consider the following:

Reputation: Look for manufacturers with a strong track record of delivering durable and reliable cylinders.

Quality Assurance: Ensure that the cylinders meet industry standards and have undergone rigorous testing.

Customization: Some manufacturers offer custom solutions tailored to your unique requirements, which can be beneficial for specialized applications.

Among the top manufacturers in the industry, companies like Airmax Pneumatics Ltd. are known for their high-quality double acting cylinders that are built to last. These manufacturers offer a wide range of options, allowing you to select the cylinder that best suits your application.

Conclusion

In conclusion, double acting cylinders are indispensable components in many pneumatic systems, offering superior control, versatility, and efficiency. Understanding how they work and why they are preferred in various applications can help you make informed decisions when selecting a cylinder for your needs. Whether you’re involved in manufacturing, automation, or any other industry that relies on precise linear motion, choosing the right double acting cylinder can significantly enhance your system’s performance.
